Name: Numerical Control Automatic EV Cell Battery Spot Welding Machine For 18650 Battery Pack
Brand: XWELL
Price: 10000 USD

Brand Name : XWELL

Model Number : XW-ADW

Certification : CE

Place of Origin : China

MOQ : 1

Price : 10000-1000000USD/Negotiable

Payment Terms : D/A,D/P,T/T,L/C

Supply Ability : 30 pcs a month

Delivery Time : 7 days

Packaging Details : wooden case

Order(Moq) : 1set

Input Power : 2KW

Payment : L/C D/A D/P T/T Western Union

Contact Now

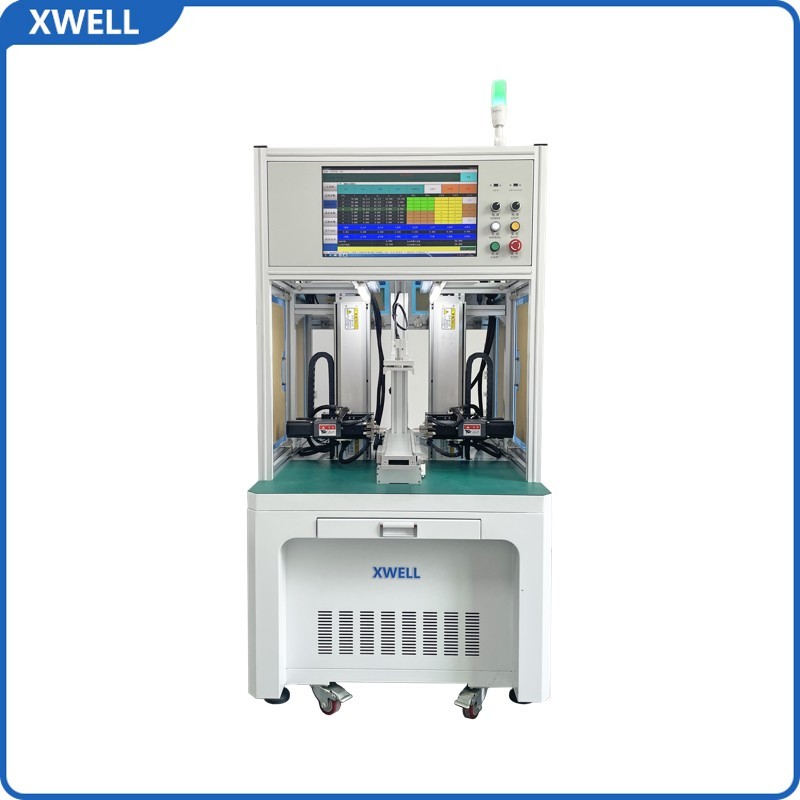

Automatic Numerical Control EV Cell Battery Spot Welding Machine For 18650 Battery Pack

This Battery Welding machine is used for 18650 battery pack automatic spot welding, it can weld both side together with high speed and good effect.

Features :

1. Support breakpoint start, support automatic start and manual start mode conversion.

2. It has a false spot welding and out of spot welding alarm function.

3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4. Welding needle replacement forecast reminder.

5. Own welding current monitoring system, real-time monitoring of welding current.

Specification

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip :0.03-0.3mm


Numerical Control Automatic EV Cell Battery Spot Welding Machine For 18650 Battery Pack
