100Ah-280Ah Prismatic Lithium Battery Cell Stacking Machine

Brand Name : XWELL

Model Number : XW-12

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Payment Terms : L/C,D/A,D/P,T/T

Supply Ability : 50 pcs a month

Delivery Time : 7- 15days

Packaging Details : wooden case

Input Power : 1.5kw

Warranty : One Year warranty with lifetime support

Payment : T/T

Price : 10000-1000000USD/Negotiable

Contact Now

Prismatic Lithium Battery Cell Stacking Machine

Ⅱ,Equipment performance parameters :
2.1 Applicable battery model:Prismaitc cell:100Ah-280Ah;
2.2 Module compatible size specifications:Length:200-900mm,width:100-320mm,height:80-250mm;
2.3 Probability of equipment damage to products:≤0.1%;
2.4 Equipment program control method: PLC control;
2.5 Capacity speed:≥8ppm(Specific depends on manual operation);
2.6 NG equipment failure rate:≤1%(Malfunctions caused solely by equipment);
2.7 Squeeze pressure range:0-500kg,Squeezing reaches the set upper limit value, with a red buzzing light alarm function;
2.8 Squeeze stroke range 0-110mm adjustable;
2.9 Using high-precision pressure load gauges,Accuracy:0.1%;
2.10 Squeezing and moving with repeated positioning accuracy:±0.05mm;



2.11 Real time monitoring of extrusion distance and extrusion pressure dual protection, each parameter can be adjusted through PLC;



Ⅲ,Equipment environmental conditions requirements :
3.1 Ambient temperature:5ºC-35 ºC
3.2 Humidity:20%-90%
3.3 Air Pressure :0.5~0.6 Mpa
3.4 Supply voltage:220V-50Hz/60Hz
3.5 Area to weight ratio:≤200kg/M²
3.6 Grounding type: direct grounding type
  • Specication
  • Equipment Efficiency 50 groups/hour (10PCS battery cells)
    Equipment grafting rate ≥98%
    Extrusion stroke 1000mm
    Stacking maximum pressure 100KG
    Adaptable size range L:50~250mmW:20~100mmH:100~300 mm
    Pressure control error  0.1KG
    Control system PLC+touch screen
    Input power supply AC220V/50HZ
    Weight 300kg
    Equipment appearance reference size  L*W*H=1570*500*1400mm
  • Picture

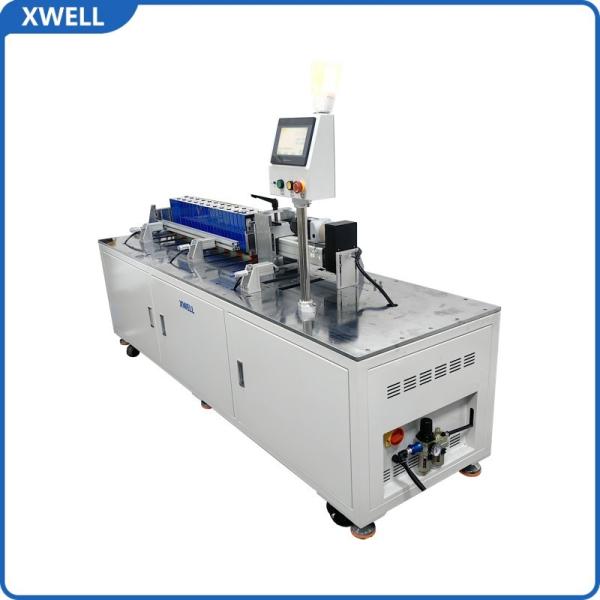

  • 100Ah-280Ah Prismatic Lithium Battery Cell Stacking Machine
