Nickel Strip Cutting Machine For Battery Tab Cutting
Introduction:
1 XW-100 Nickel Cutting Machine is mainly used for all kinds of metal and no-metal strip materials, such as copper foil, Aluminum Foil, copper foil tape, batteries nickel belt and so on.
2 For mobile phone battery pack, it used for for the Nickel cutting with lower cost than formed size Nickel chips.
Advantage:
1.High speed: It can cut 100~120 cut per minute. (50mm long)
2.Accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.
3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.
4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.
5.Automatic stopper: It stops automatically if materials run out during operation
6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on
7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.
8.High speed, high accuracy, designed for cutting non-adhesive materials.
Speicication:
| Model | Nickel Cutting Machine |
| Source voltage | AC 220V/110V, 50/60HZ, Customized |
| Warranty | one year |
| Advantages | 1 In automatic stop without materials, unattended
2 With a knife or blade adjustment conveniently
3 Automatic grouping and total cumulative count
4 Suitable for all kinds of metal and no-metal strip materials, such as copper foil,
aluminum foil, copper foil tape, batteries nickel belt and so on |
| Cutting length | 0.1mm-10m |
| Cutting width | 0.1-100mm, according to model we choose |
| Dimension(L*W*H) | 360*300*350mm |
| Weight | 30kg |

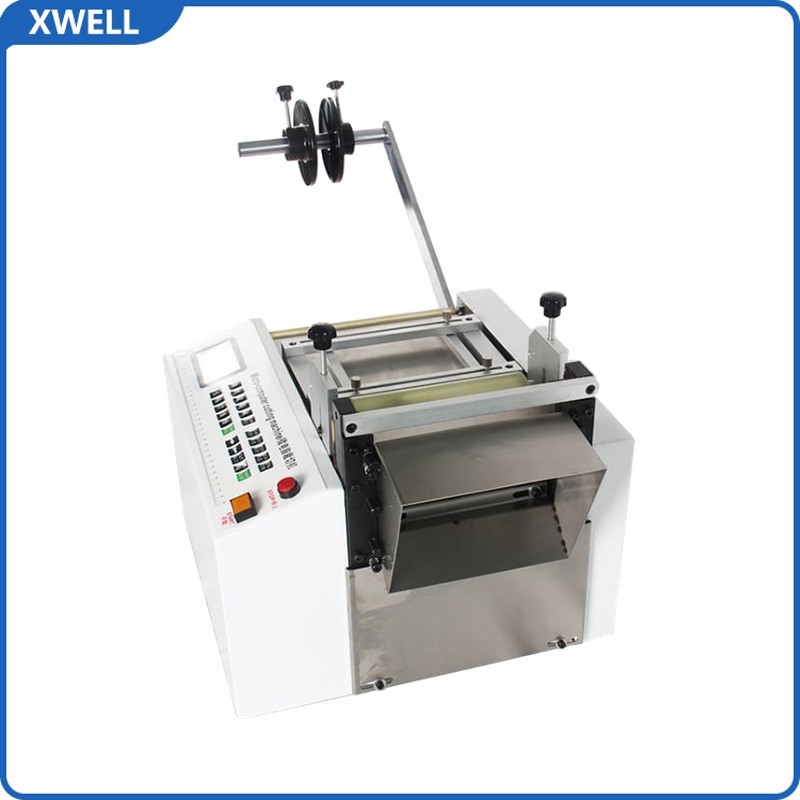

Picture:
